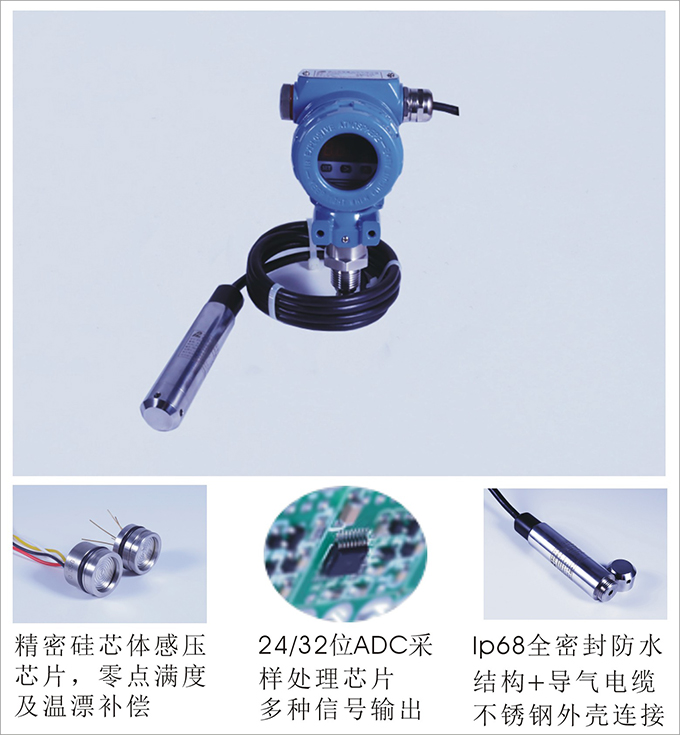

芯       片：
精密穩定硅壓阻芯體；
選進的貼片工藝，具有零點、滿量程補償、溫度補償；
靜壓式液位/水位測量原理；
全封焊結構，IP68密封防水電氣出線；

信號處理及輸出：
24位ADC采樣處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
四位顯示表頭，小數位可調；表頭采樣速率：10次/S

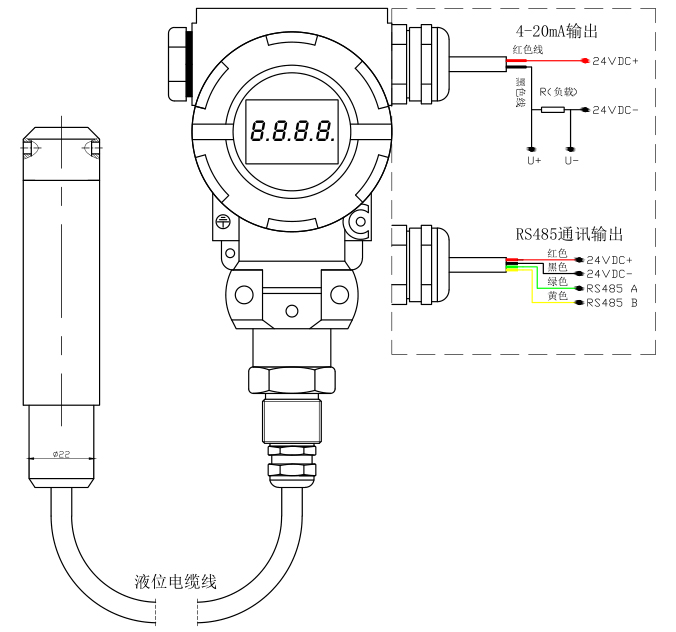

標準工業信號輸出：4-20mA(二線制);

數字通訊信號輸出：RS485-RTU、超低功耗RS485-RTU
采用先進的32bit微處理器和24bit ADC
傳輸協議采用通用的MODBUS-RTU協議
支持波特率：1200~57600bps，校驗位：NONE、ODD、EVEN
支持用戶二次校準、清零、反清零、恢復出廠等操作
支持11種單位切換，支持浮點型、整型、百分比、格式化輸出
采集間隔0~43200秒(12小時)可設，既可連續采集，滿足高速采集的場合，也可單次觸發采集，最大限度降低功耗

結       構：
結構小巧、全封焊結構；
IP68密封防水電氣出線；
不銹鋼外殼+防爆鑄鋁2088接線殼、2-7芯帶導氣管專用液位電纜；

應      用：

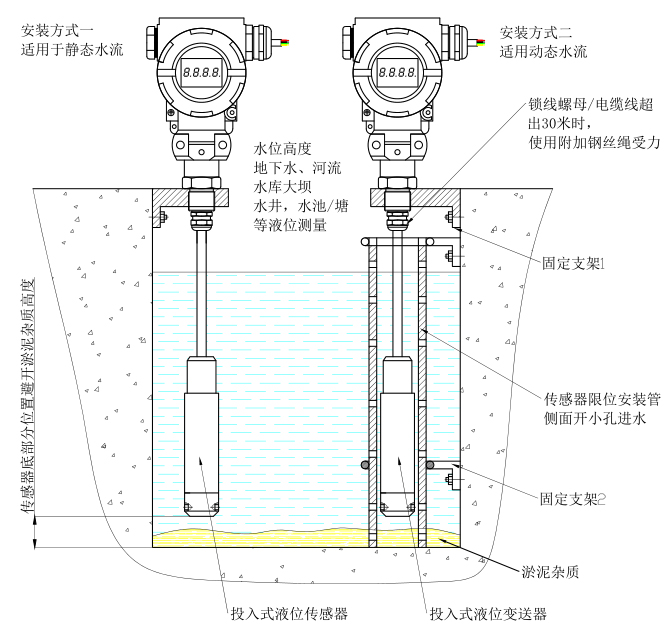

地下水、水井、水池、水塘、水箱、水塔的水位測量與監控；
河流、大壩、水電站、水庫、消防、城市內澇等水位測量與監控；
油箱、油井、油庫等油位的測量與監控；


Chip:
Imported silicon piezoresistive core body;
The selected mounting process has zero point, full range compensation and temperature compensation;
Principle of hydrostatic level / water level measurement;
Fully sealed and welded structure, IP68 sealed waterproof electrical outlet;

Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Four digit indicator with adjustable decimal; meter sampling rate: 10 times / s

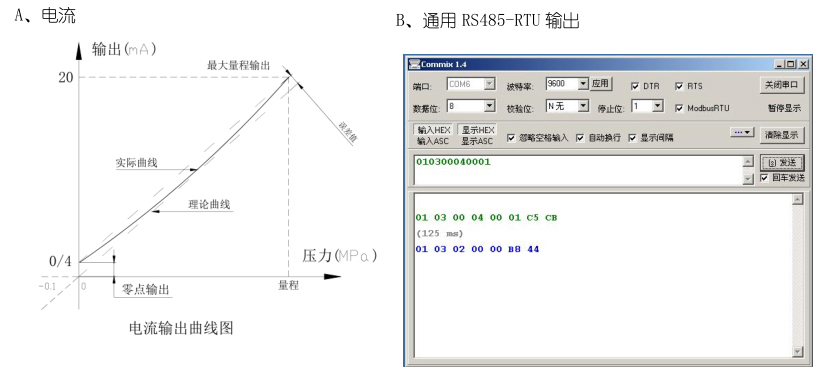

Standard industrial signal output: 4-20mA (two-wire system);

Digital communication signal output: rs485-rtu, ultra-low power rs485-rtu
Advanced 32 bit microprocessor and 24 bit ADC are adopted
The transmission protocol is MODBUS-RTU
Support baud rate: 1200 ~ 57600bps, check bits: none, odd, even
Support the user's secondary calibration, reset, anti reset, restore factory operations
Support 11 kinds of units switching, support floating point, integer, percentage, formatted output
The acquisition interval of 0 ~ 43200 seconds (12 hours) can be set, which can not only meet the needs of high-speed acquisition, but also trigger acquisition once to minimize power consumption

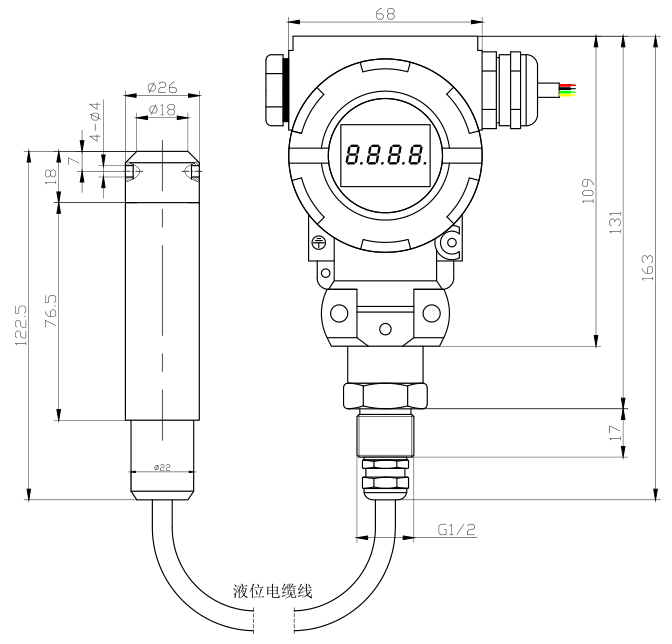

Structure:
Compact structure, full sealing and welding structure;
IP68 sealed waterproof electrical outlet;
Stainless steel shell + explosion-proof cast aluminum 2088 connection shell, 2-7-core liquid level cable with air duct;

Application:
Water level measurement and monitoring of groundwater, well, pool, pool, water tank and water tower;
Water level measurement and monitoring of rivers, dams, hydropower stations, reservoirs, fire fighting, urban waterlogging, etc;
Oil level measurement and monitoring of oil tank, oil well, oil depot, etc;
