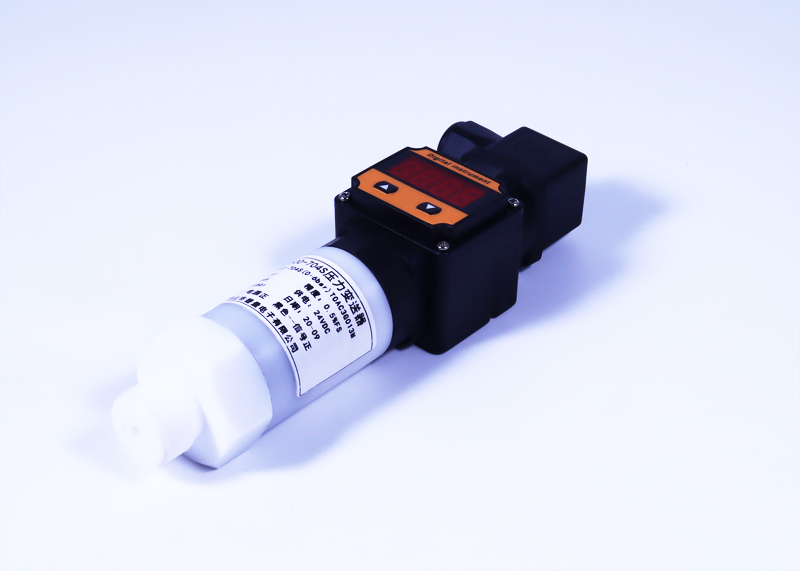

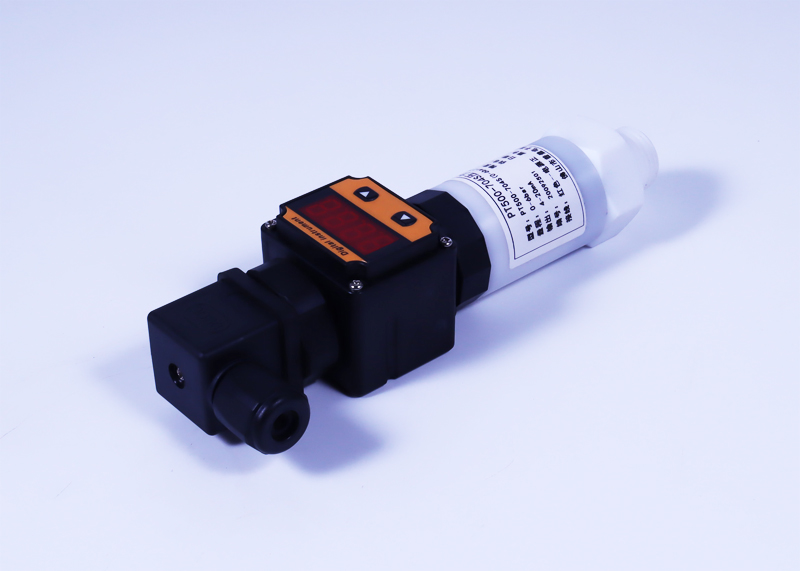

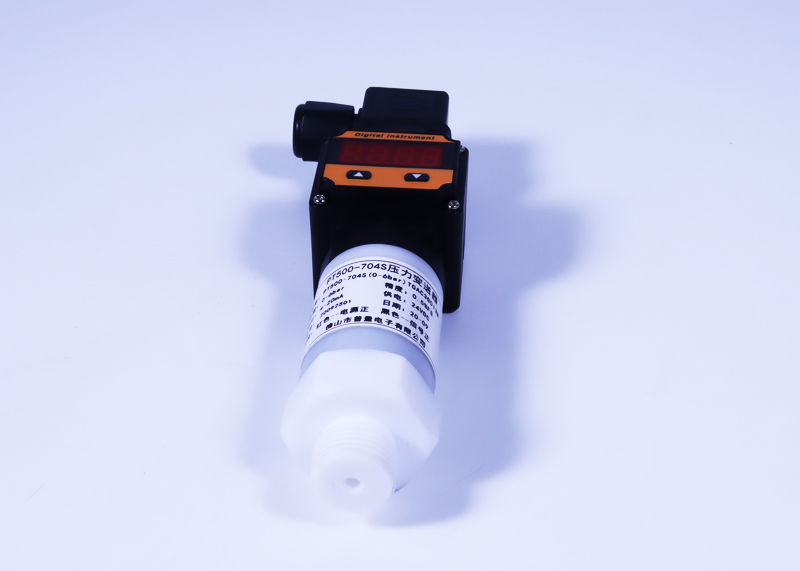

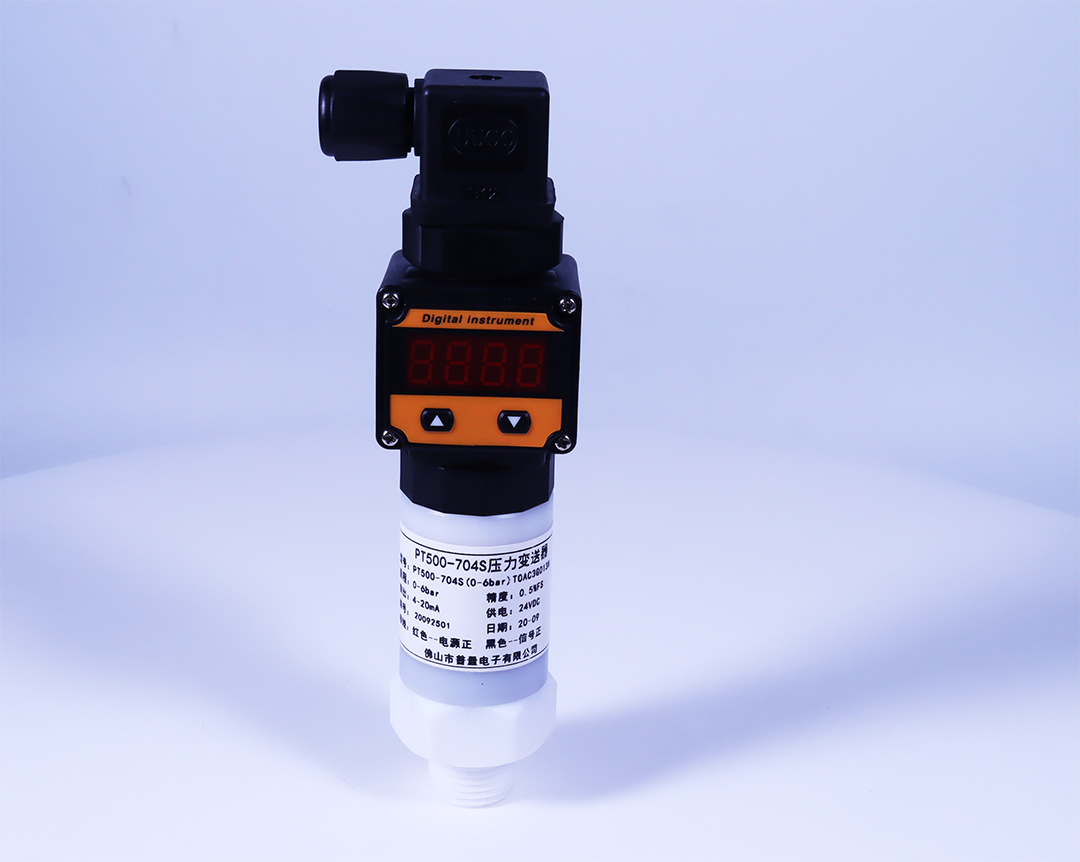

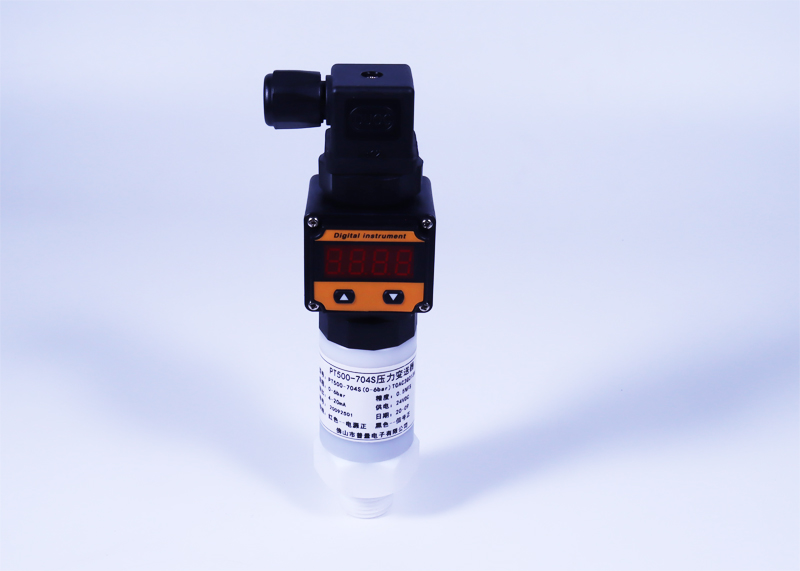

PT500-704S 耐腐蝕數顯壓力變送器

進口陶瓷壓阻芯體；
外殼材料采用耐腐蝕進口聚四氟乙烯(鐵氟龍)材料；
四位顯示表頭，小數位可調；
表頭采樣速率：10次/S；
4-20mA二線制電流輸出；
專用鐵氟龍防腐蝕電纜

常用關鍵字：
耐腐蝕數顯壓力變送器 耐腐蝕數顯壓力傳感器
防腐蝕數顯壓力變送器 防腐蝕數顯壓力傳感器
氯氣數顯壓力變送器 氯氣數顯壓力傳感器

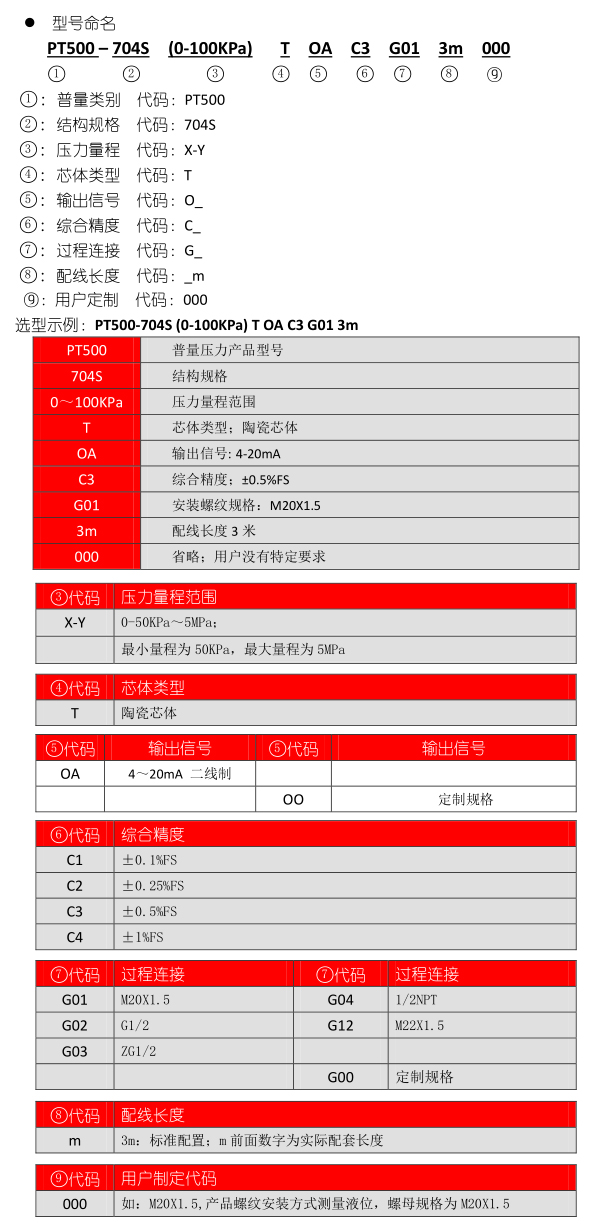

Model:PT500-704S
Imported ceramic piezoresistive core;
The shell material is made of Teflon imported corrosion resistant material;
Four digit display header, decimal places adjustable;
Sample rate of header: 10 times/S;
4-20mA two wire current output;
Special Teflon corrosion proof cable

Common keywords:
Corrosion resistant digital display pressure transmitter corrosion resistant digital display pressure sensor
Corrosion proof digital display pressure transmitter corrosion proof digital display pressure sensor
Chlorine digital display pressure transmitter chlorine digital display pressure sensor

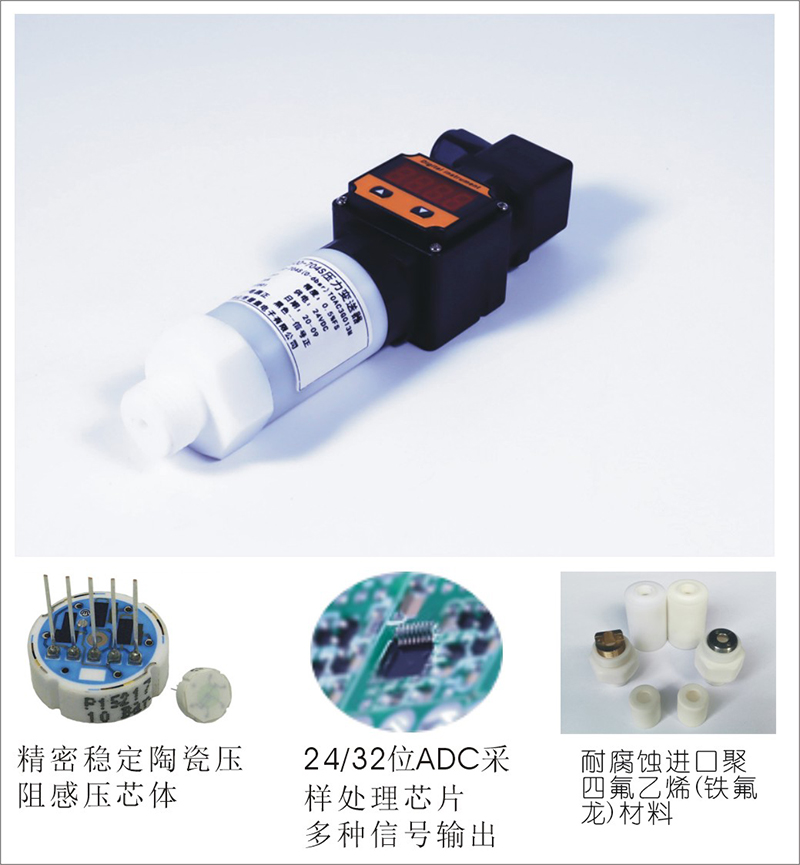

芯       片：
進口陶瓷壓阻芯體；
選進的貼片工藝，具有零點、滿量程補償、溫度補償；

信號處理及輸出：
24位ADC采樣處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
四位顯示表頭，小數位可調；
表頭采樣速率：10次/S；
4-20mA二線制電流輸出；

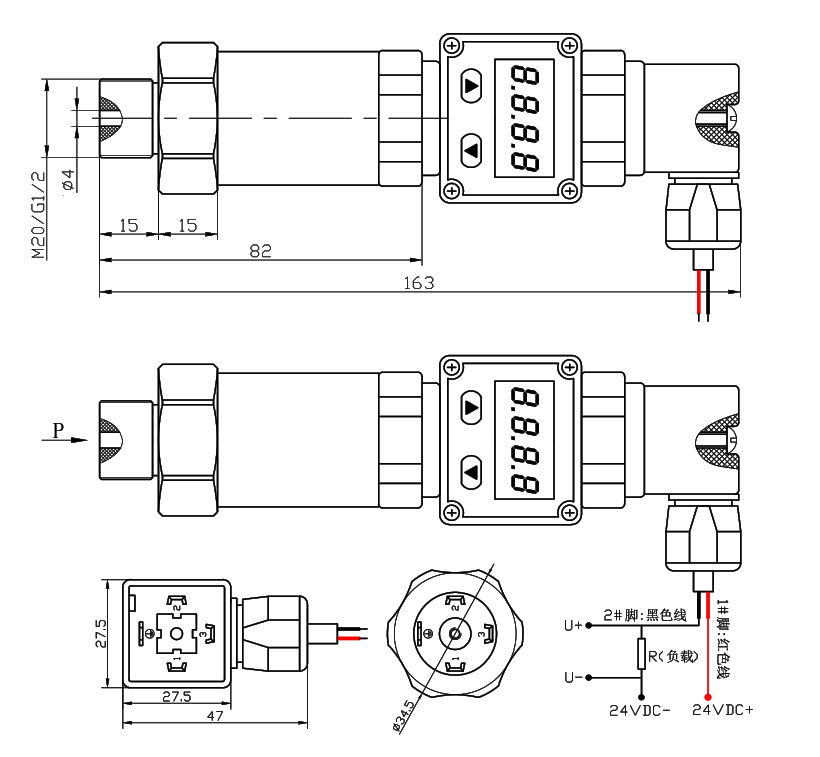

結       構：
外殼材料采用耐腐蝕進口聚四氟乙烯(鐵氟龍)材料；
DIN43650赫斯曼標準電氣連接器；
專用鐵氟龍防腐蝕電纜

應      用：
PH值3-11的液位測量與監控；
化工、氯氣等腐蝕性液體的液位測量與監控；

Chip:

Imported ceramic piezoresistive core;
The selected chip technology has zero point, full scale compensation and temperature compensation;
Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint line temperature calibration;
Voltage and current overload protection;
Four digit display meter, adjustable decimal places;
Sampling rate of meter head: 10 times / S;
4-20mA two-wire current output;

Structure:
The shell is made of corrosion-resistant imported PTFE (Teflon);
Din43650 hesman standard electrical connector;
Special Teflon anticorrosion cable

Application:
Liquid level measurement and monitoring of pH value 3-11;
Chemical, chlorine and other corrosive liquid level measurement and monitoring;
